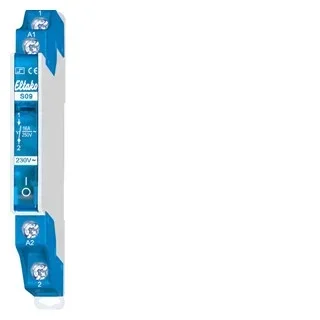

Eltako S09-230V Pulsrelais DIN-rail 1x NO 230 V 8 A 1 stuk(s)

Type S09-230V

Voedingsspanning 230V

Contactsoort 1x NO

Schakelspanning (max.) 230V/AC

Schakelstroom (max.) 8A

Montagewijze DIN-rail

Diepte 55mm

Inhoud 1stuk(s)

Gewicht 0.05

Mounting method DIN rail

Function Other

Built-in depth 55mm

Width in number of modular spacings 0.5

Control voltage 230-230V

Type of control voltage AC

Frequency control voltage 50-50Hz

Suitable for manual operation TRUE

Max. switching current (cos phi = 0.6) 8A

Max. load fluorescent lamp (parallel compensated) 500VA

Rated switch current 16A

Number of contacts as normally closed contact 0

Number of contacts as normally open contact 1

Number of contacts as change-over contact 0
